Yakima Product and Packaging illustrations

A series of illustrations for Yakima racks, done over several years of product changes. The object was to make the product have some idea of location.

Yakima rack technical illustrations.

Below are a few samples from the 600 plus illustrations done for Yakima racks.

Yakima, "Big Tow" bicycle trailer. Technical product illustration.

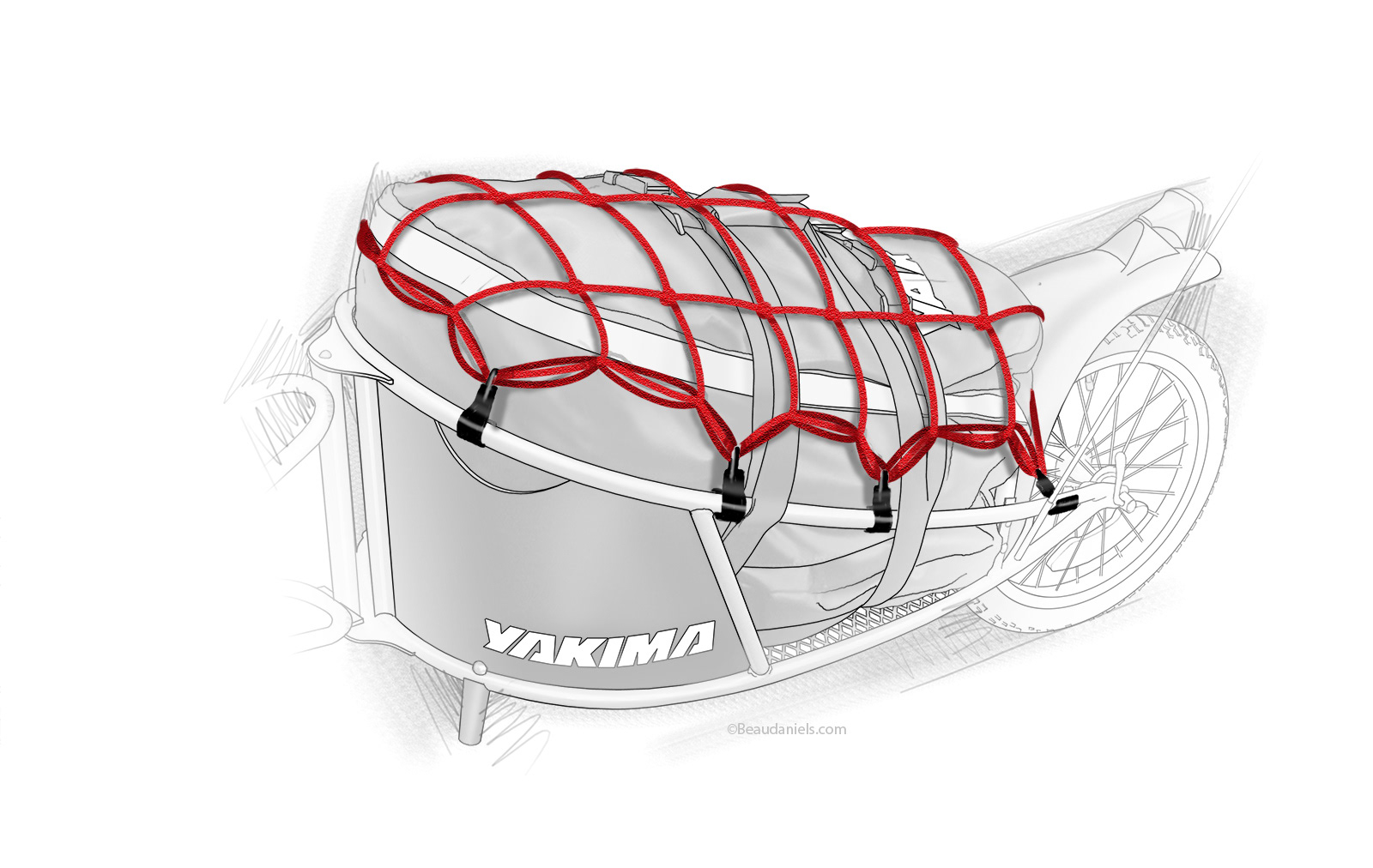

Yakima, "Big Tow Cargo Net"

Yakima, "Hully Rollers" HullyRollers roller saddles provide easy loading for transport of kayaks and rowing shells.

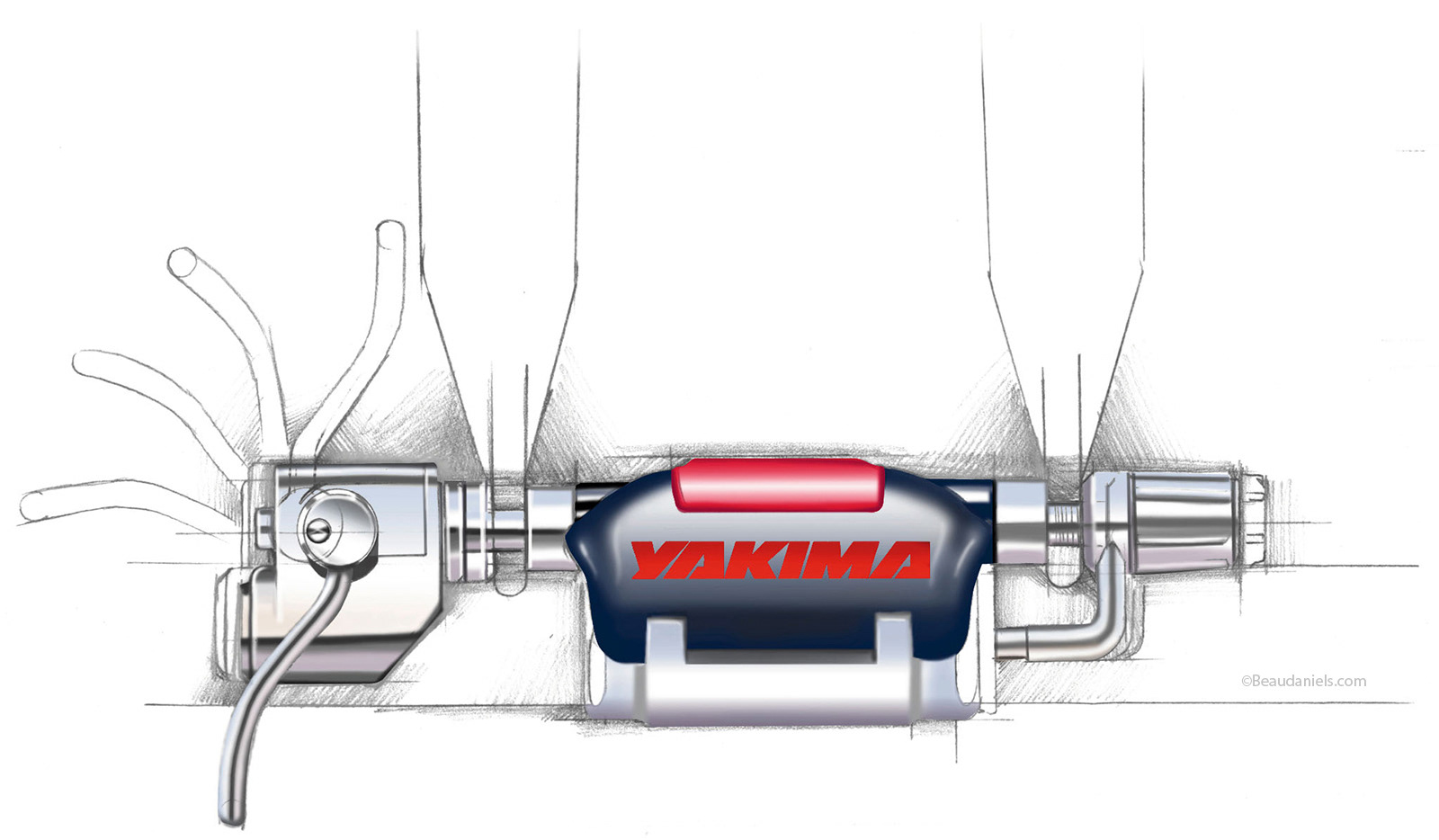

Yakima, "Viper" locking mechanism.

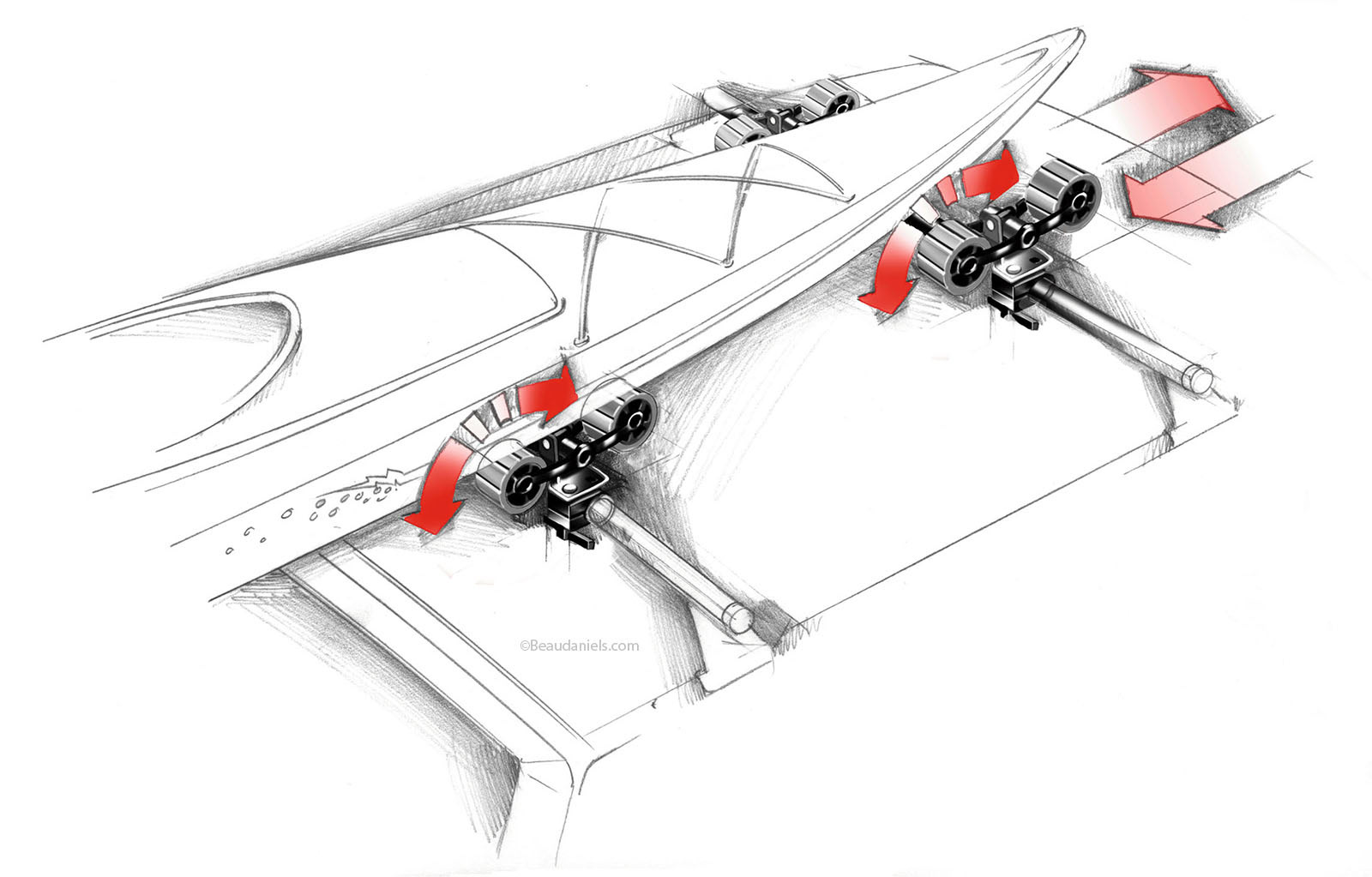

Yakima, "Canoe Loader"

Yakima, "BoaTilt" Wheel locking devise.

Yakima, Double bike rack.

Yakima, "Skislopes" SKI rack.

Yakima, "Bedhead" Bicycle front fork to truck bed attachment.

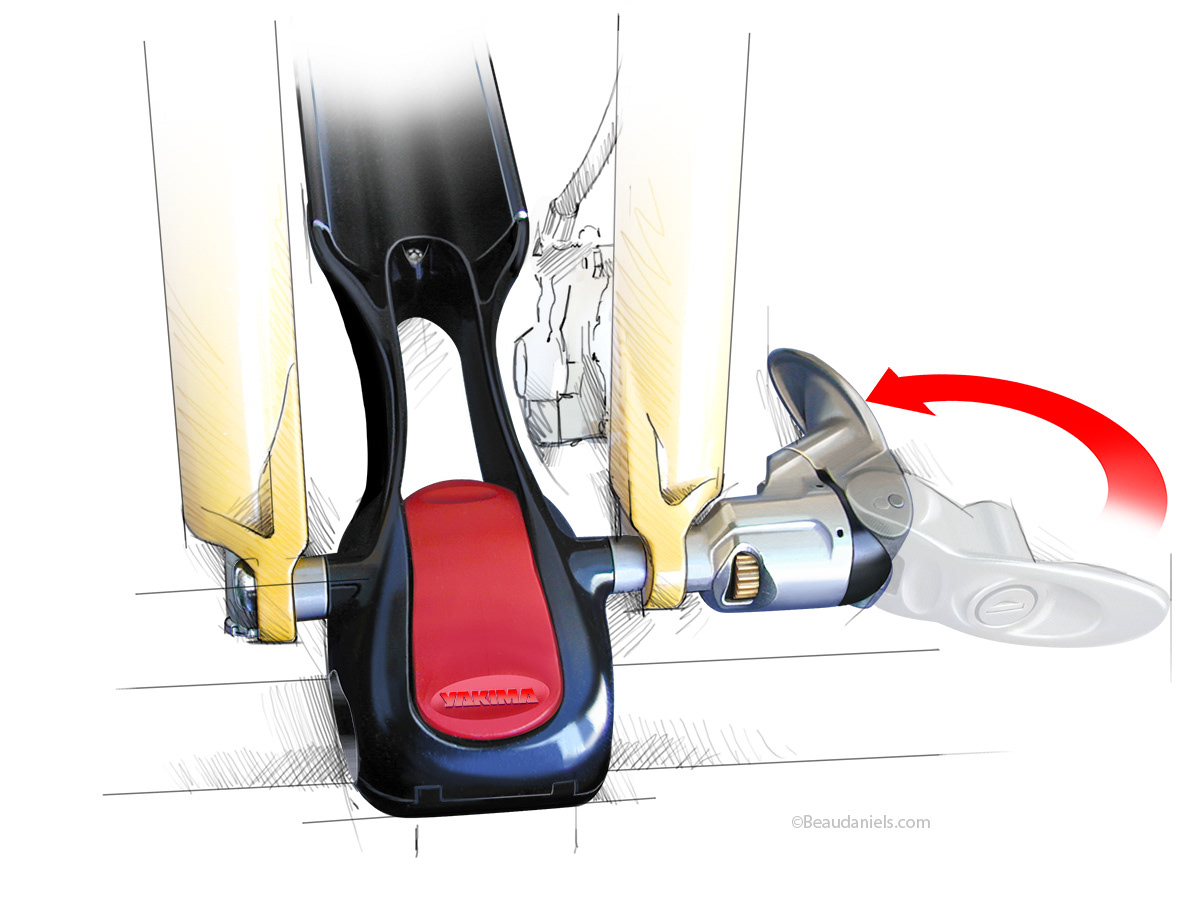

Yakima, "Steelhead" Bicycle front fork locking devise.

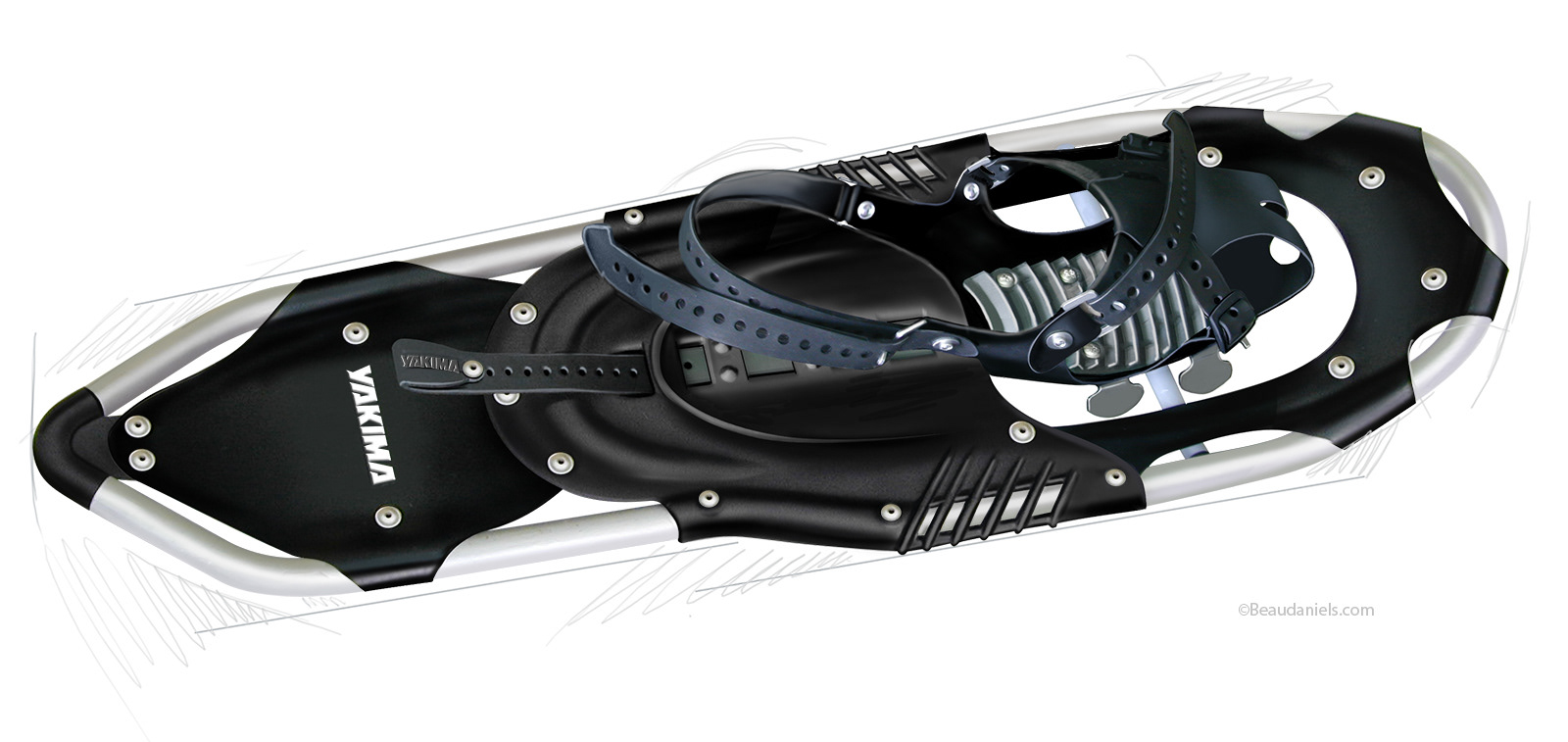

Yakima, 'Snow shoe".

Yakima, "Bed Roc"

Yakima, Down tube bike clamp.Yakima, Down tube bike clamp.Yakima, Down tube bike clamp.

Yakima, "Land shark" canoe rack.

Yakima, Multi mount ratchet strap.

Yakima, Multi mount with padlle

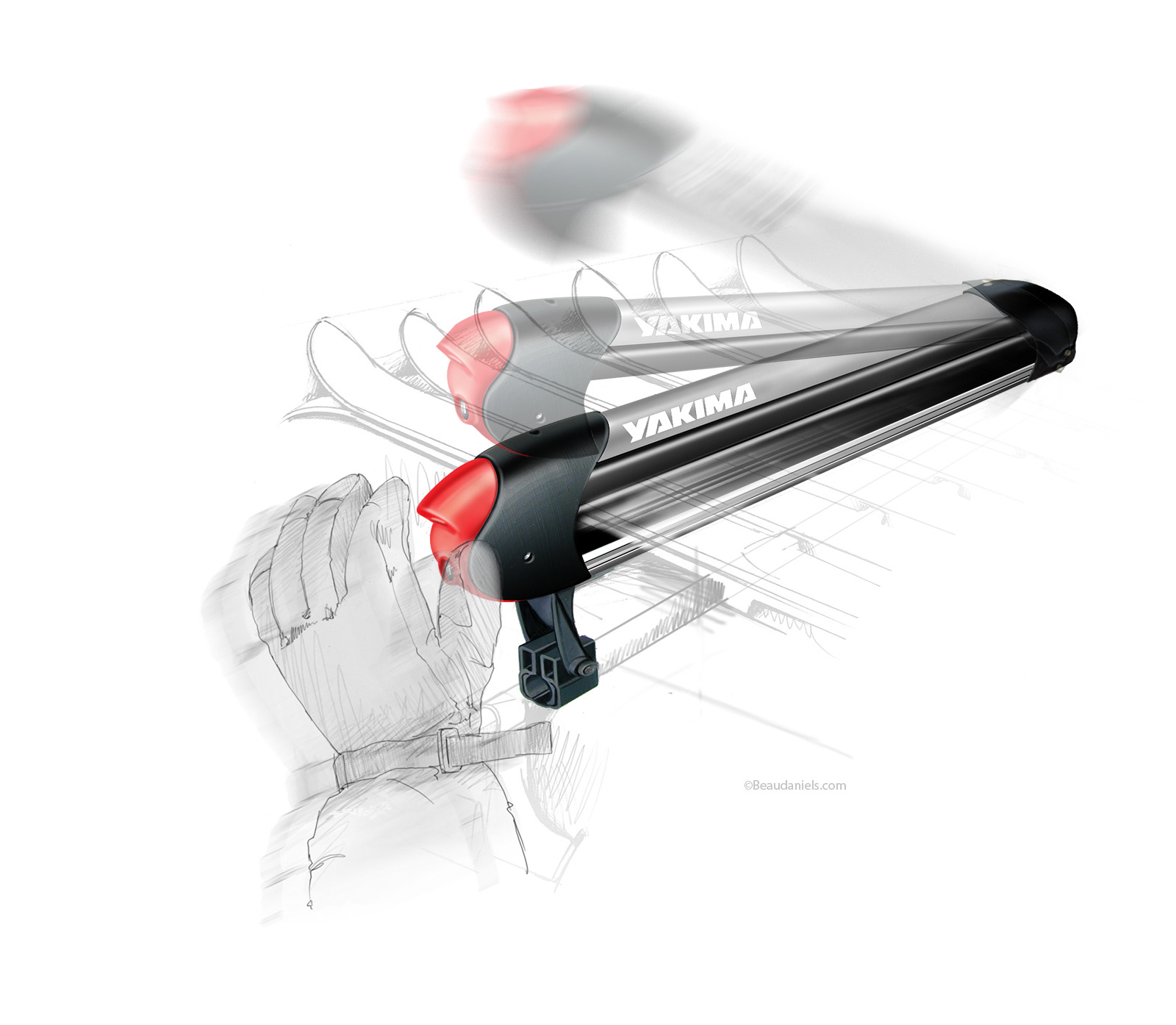

Yakima, "Powder hound". Ski rack.Yakima,

Yakima, "Powder hound". open.

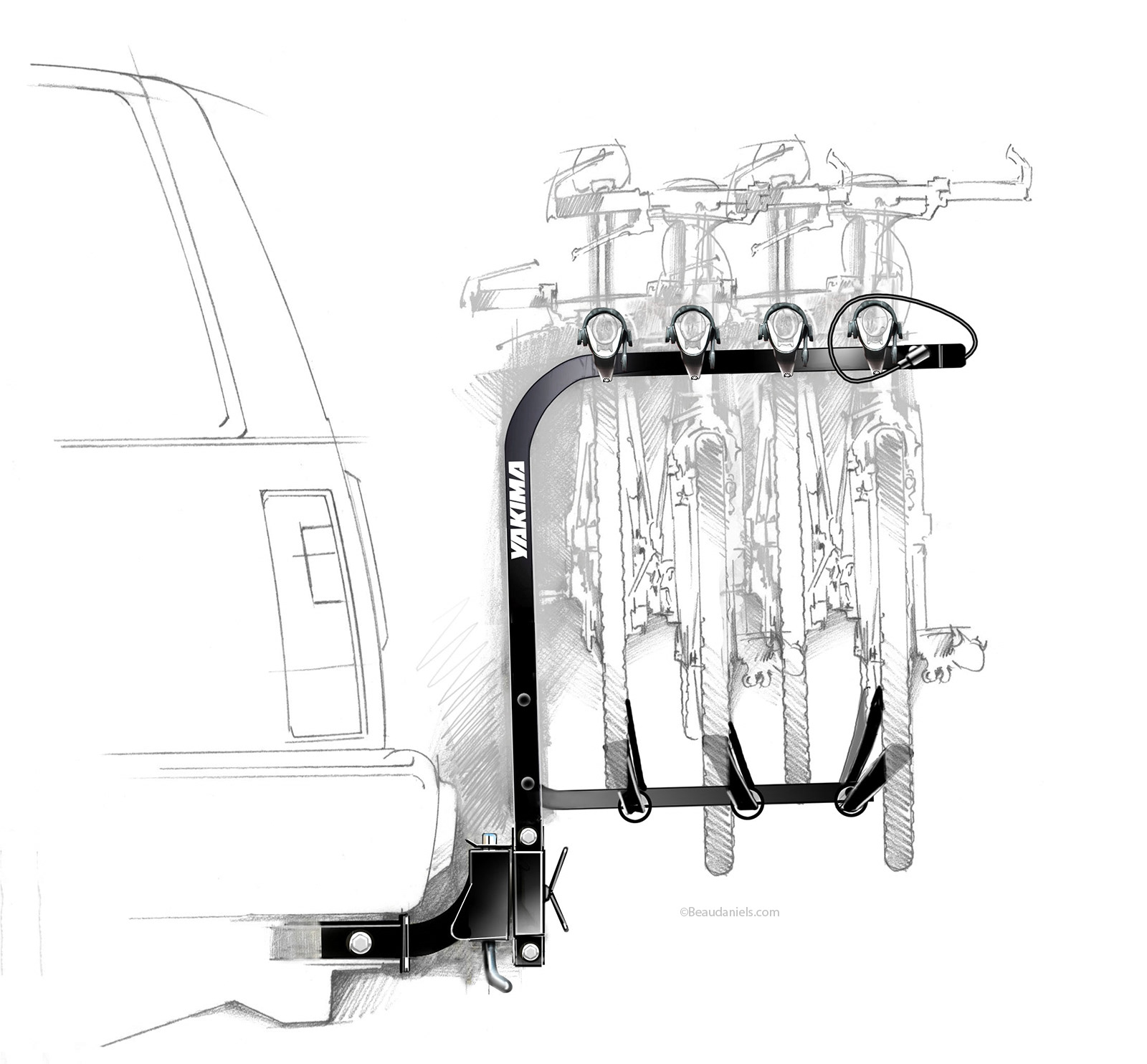

Yakima, "Roc Gate". Four bike rack

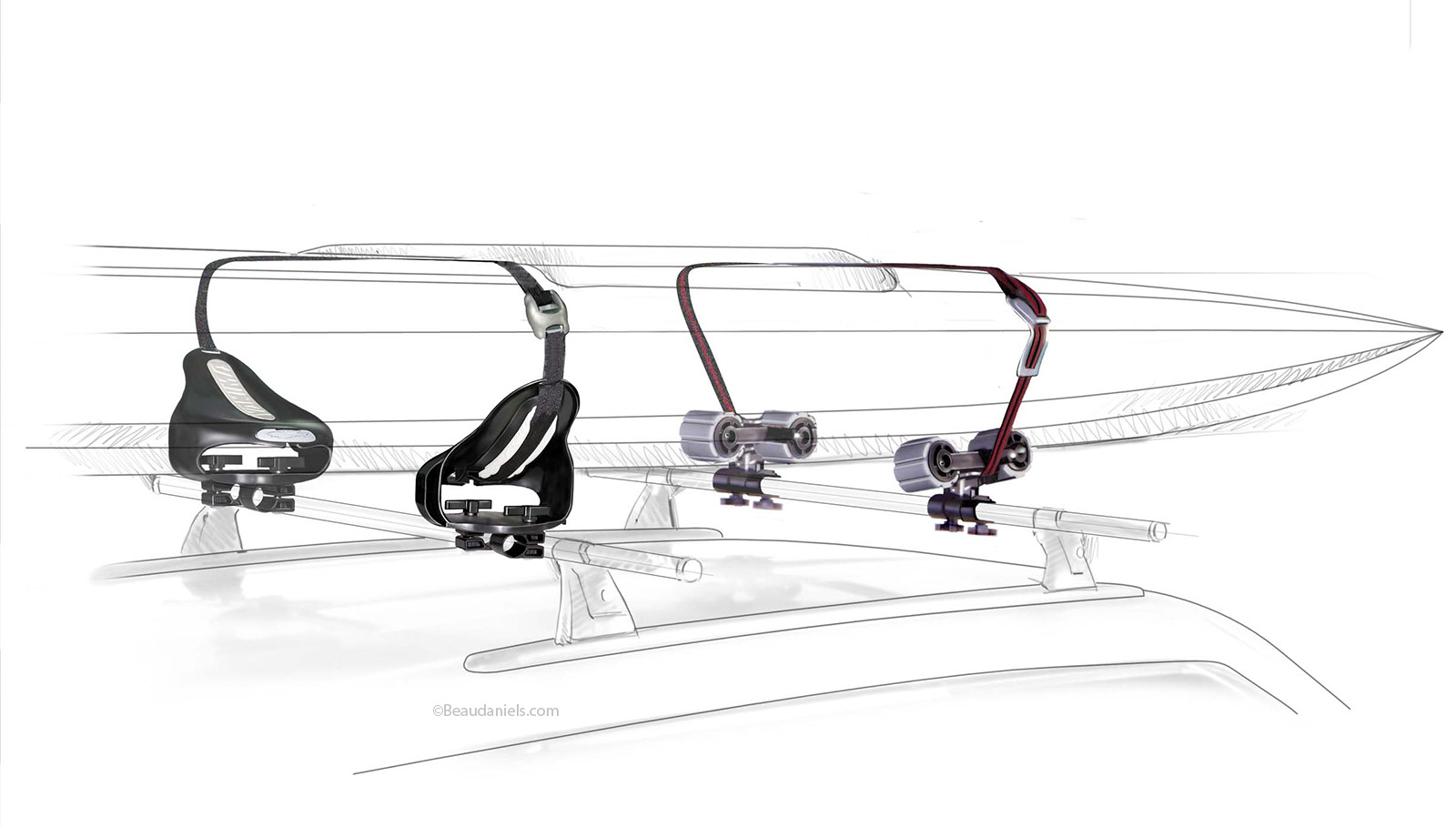

Yakima, "Land shark, Hulley roller combo".

Yakima, "Yak ratchet strap".
